EnaBolt 4a
Narrow pin bolt seals
$32.00
inc. GST
In Stock
Notify me when back in stock
Please note that the online prices apply exclusively to self-checkout transactions and do not extend to phone, email, in-store orders and customers with credit terms.
Product Information

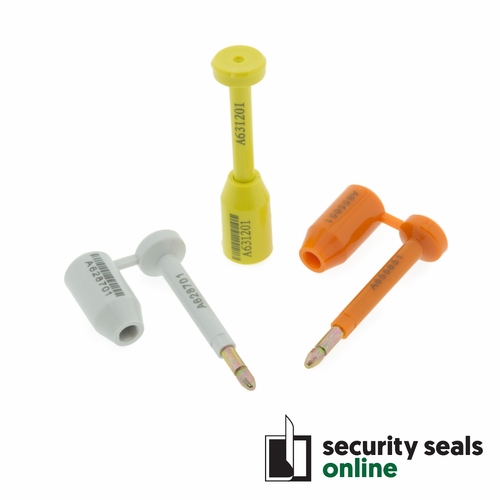

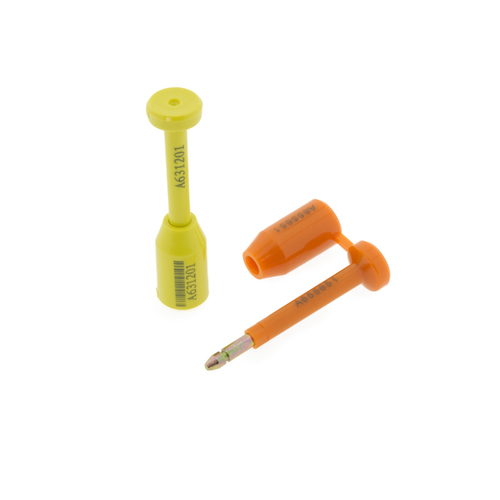

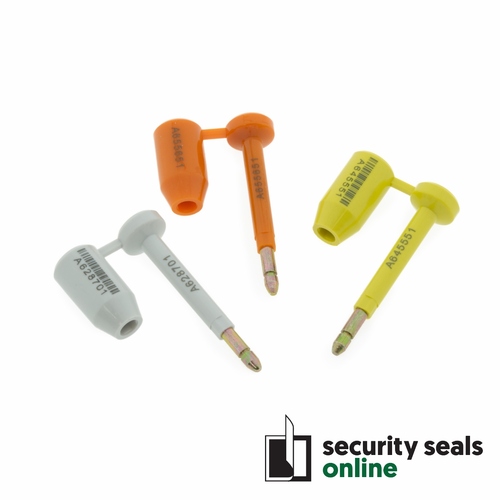

The latest EnaBolt 4a version functions as a barrier seal with a pull strength surpassing 500kg, necessitating a bolt cutter for removal. Its slim pin diameter is perfect for securing narrow openings. Complete with anti-spin and barcoding for convenience. Please be aware that while EnaBolt 4a is not suitable for container exports from Australia, it remains an excellent choice for domestic applications.
Comparison Table
| EnaBolt 1c | EnaBolt 2a | EnaBolt 3 | EnaBolt 4 | EnaBolt 5a | EnaBolt 6 | EnaBolt 7 | EnaBolt 8 | EnaBolt mini | HanaLock | |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| barrel length | 31mm | 37.0mm | 18.0mm | 17.0mm | 33.8mm | 33mm | 34mm | 31mm | 25mm | 35mm |
| barrel diameter | 23.6mm | 23.5mm | 20.0mm | 18.0mm | 24.5mm | 20.5mm | 15.0mm | 22mm | 12.7mm | 22.8mm |
| pin length | 87.4mm | 84.5mm | 87.0mm | 70mm | 85.5mm | 74mm | 74mm | 81.6mm | 37mm | 76mm (uncoated) 78.5mm (coated) |
| pin diameter | 8.0mm steel pin (11.0mm inc. coating) |
8.0mm steel pin (10.0mm inc. coating) |
4.0mm cable wire | 5.0mm steel pin (7.0mm inc. coating) |
8.0mm steel pin (11.0mm inc. coating) |
8.0mm steel pin | 8.0mm steel pin (11.0mm inc. coating) |
8.0mm steel pin | 4mm | 8.0mm (uncoated) 12.6mm (coated) |
| material | steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel | steel abs plastic |
steel abs plastic |
| locking distance | 54.9mm | 44.0mm | 54.0mm | 44.0mm | 48mm | 48mm | 48mm | tba | 20mm | 54mm (uncoated) 41mm (coated) |
| break strength | >1,500kg-f | >1,500kg-f | >660kg-f | >500kg-f | >1,500kg-f | >1,200kg-f | >1,500kg-f | >1,500kg-f | >300kg-f | >1,000kg-f |
| export friendly | yes | yes | no | no | yes | yes | yes | yes | no | yes |
| iso/pas 17712 | yes | yes | yes | yes | yes | yes | yes | |||
| anti-spin | yes | yes | no | no | yes | yes | yes | yes | no | yes, limited |
| encapulation | no | no | no | no | no | no | yes | no | no | no |
| feature | flexible cable | all-metal build | 180° rotation limit |
Specifications
| Features | Plastic enclosure for the barrel is made of high quality ABS material to withstand impact Only plastic surfaces are exposed after seal is applied to show evidence of physical tampering of the seal Attached pin design keeps matching pairs of pin and barrel together until application Anti-spin build. |
| Material | Pin: Steel Barrel: Steel Body: ABS plastic |
| Colours | Blue Green Orange Red White Yellow |
| Dimensions | Barrel diameter: 18mm x 17mm Pin diameter: 5mm (7mm inc. coating) |
| Markings | Serial numbers & barcode on barrel Serial numbers on pin Orange Serial numbers on pin & barrel |
| Print method | Laser engraved |
| Breaking strength | Tensile strength of 4.9kN |
| Applications | Cargo containers Trucks Trailer vehicle doors Rail freight |
| Customisations | Custom markings Colours Numbering * Minimum order quantities required |
| For more information | bsealed.co/enabolt4 |
