EnaBolt 4
Narrow pin bolt seals
WAS $30.00
NOW $25.50
Sale Ends in
00:00 am, 30 November 2024
Notify me when back in stock
Please note that the online prices apply exclusively to self-checkout transactions and do not extend to phone, email, in-store orders and customers with credit terms.
Product Information

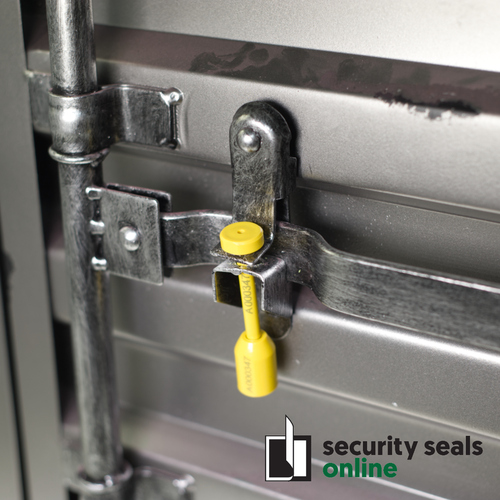

Looking for a budget-friendly barrier seal? The EnaBolt 4 can serve as a barrier seal with a pull strength exceeding 500kg, requiring a bolt cutter to remove. Its narrow diameter pin makes it ideal for securing narrow orifices. It's important to note that EnaBolt 4 is not suitable for container exports from Australia, but it is an excellent choice for domestic use.
Comparison Table
| EnaBolt 1c | EnaBolt 2a | EnaBolt 3 | EnaBolt 4 | EnaBolt 5a | EnaBolt 6 | EnaBolt 7 | EnaBolt 8 | EnaBolt mini | HanaLock | |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| barrel length | 31mm | 37.0mm | 18.0mm | 17.0mm | 33.8mm | 33mm | 34mm | 31mm | 25mm | 35mm |
| barrel diameter | 23.6mm | 23.5mm | 20.0mm | 18.0mm | 24.5mm | 20.5mm | 15.0mm | 22mm | 12.7mm | 22.8mm |
| pin length | 87.4mm | 84.5mm | 87.0mm | 70mm | 85.5mm | 74mm | 74mm | 81.6mm | 37mm | 76mm (uncoated) 78.5mm (coated) |
| pin diameter | 8.0mm steel pin (11.0mm inc. coating) |
8.0mm steel pin (10.0mm inc. coating) |
4.0mm cable wire | 5.0mm steel pin (7.0mm inc. coating) |
8.0mm steel pin (11.0mm inc. coating) |
8.0mm steel pin | 8.0mm steel pin (11.0mm inc. coating) |
8.0mm steel pin | 4mm | 8.0mm (uncoated) 12.6mm (coated) |
| material | steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel | steel abs plastic |
steel abs plastic |
| locking distance | 54.9mm | 44.0mm | 54.0mm | 44.0mm | 48mm | 48mm | 48mm | tba | 20mm | 54mm (uncoated) 41mm (coated) |
| break strength | >1,500kg-f | >1,500kg-f | >660kg-f | >500kg-f | >1,500kg-f | >1,200kg-f | >1,500kg-f | >1,500kg-f | >300kg-f | >1,000kg-f |
| export friendly | yes | yes | no | no | yes | yes | yes | yes | no | yes |
| iso/pas 17712 | yes | yes | yes | yes | yes | yes | yes | |||
| anti-spin | yes | yes | no | no | yes | yes | yes | yes | no | yes, limited |
| encapulation | no | no | no | no | no | no | yes | no | no | no |
| feature | flexible cable | all-metal build | 180° rotation limit |
Specifications
| Features | Plastic enclosure for the barrel is made of high quality ABS material to withstand impact Only plastic surfaces are exposed after seal is applied to show evidence of physical tampering of the seal Attached pin design keeps matching pairs of pin and barrel together until application |
| Material | Pin: Steel Barrel: Steel Body: ABS plastic |
| Colours | Blue Green Orange Red White Yellow |
| Dimensions | Barrel diameter: 18mm x 17mm Pin diameter: 5mm (7mm inc. coating) |
| Markings | Serial numbers on pin and barrel |
| Print method | Laser engraved |
| Breaking strength | Tensile strength of 4.9kN |
| Applications | Cargo containers Trucks Trailer vehicle doors Rail freight |
| Customisations | Custom markings Colours Numbering * Minimum order quantities required |
| For more information | bsealed.co/enabolt4 |
