EnaBolt 2a
Heavy duty bolt seals
$23.10
inc. GST
In Stock
Notify me when back in stock
Please note that the online prices apply exclusively to self-checkout transactions and do not extend to phone, email, in-store orders and customers with credit terms.
Product Information

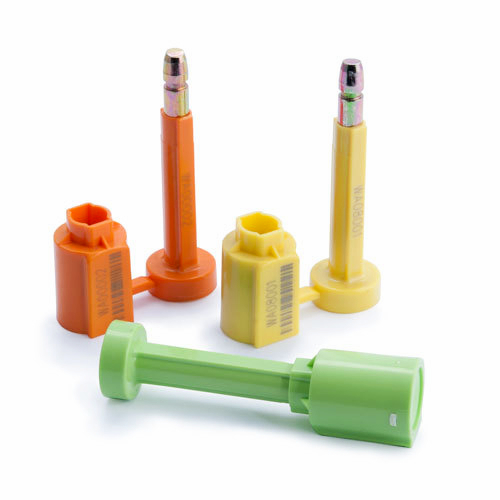

The EnaBolt 2a is a high strength bolt seal with the convenience of being packaged as a matched pair via a connected barrel and pin. The barrel and pin are both textured at key points to provide evidence of tampering if sufficient pressure is exerted on the textured surfaces (ie. put in a vice or chuck).

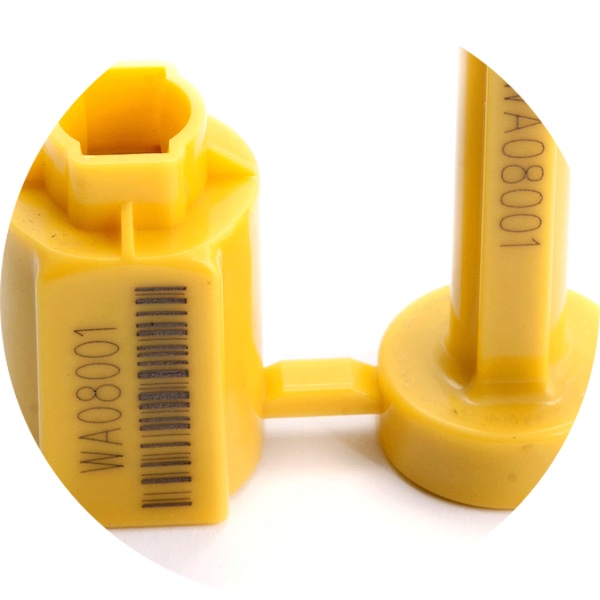

Barcode readymore efficient, less mistakes with number recording |
 |
 |

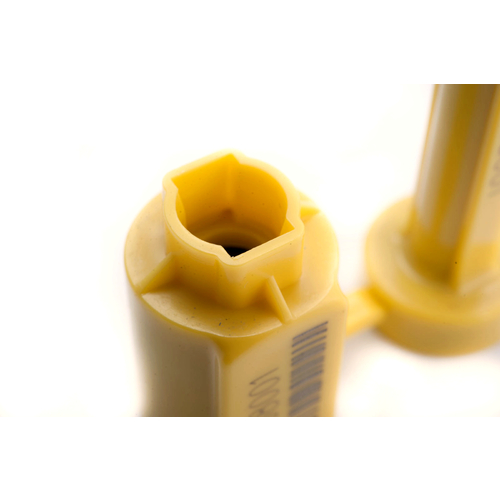

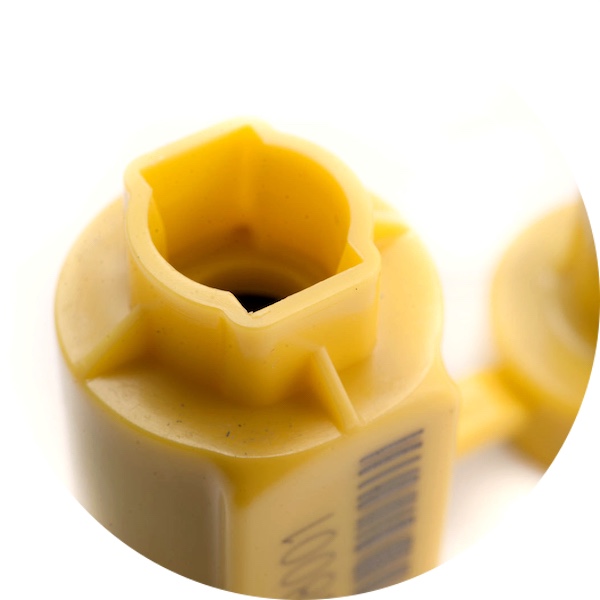

Anti-spinpreventing high speed tampering spinning techniques |
 |
 |
Comparison Table
| EnaBolt 1c | EnaBolt 2a | EnaBolt 3 | EnaBolt 4 | EnaBolt 5a | EnaBolt 6 | EnaBolt 7 | EnaBolt 8 | EnaBolt mini | HanaLock | |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| barrel length | 31mm | 37.0mm | 18.0mm | 17.0mm | 33.8mm | 33mm | 34mm | 31mm | 25mm | 35mm |
| barrel diameter | 23.6mm | 23.5mm | 20.0mm | 18.0mm | 24.5mm | 20.5mm | 15.0mm | 22mm | 12.7mm | 22.8mm |
| pin length | 87.4mm | 84.5mm | 87.0mm | 70mm | 85.5mm | 74mm | 74mm | 81.6mm | 37mm | 76mm (uncoated) 78.5mm (coated) |
| pin diameter | 8.0mm steel pin (11.0mm inc. coating) |
8.0mm steel pin (10.0mm inc. coating) |
4.0mm cable wire | 5.0mm steel pin (7.0mm inc. coating) |
8.0mm steel pin (11.0mm inc. coating) |
8.0mm steel pin | 8.0mm steel pin (11.0mm inc. coating) |
8.0mm steel pin | 4mm | 8.0mm (uncoated) 12.6mm (coated) |
| material | steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel abs plastic |
steel | steel abs plastic |
steel abs plastic |
| locking distance | 54.9mm | 44.0mm | 54.0mm | 44.0mm | 48mm | 48mm | 48mm | tba | 20mm | 54mm (uncoated) 41mm (coated) |
| break strength | >1,500kg-f | >1,500kg-f | >660kg-f | >500kg-f | >1,500kg-f | >1,200kg-f | >1,500kg-f | >1,500kg-f | >300kg-f | >1,000kg-f |
| export friendly | yes | yes | no | no | yes | yes | yes | yes | no | yes |
| iso/pas 17712 | yes | yes | yes | yes | yes | yes | yes | |||
| anti-spin | yes | yes | no | no | yes | yes | yes | yes | no | yes, limited |
| encapulation | no | no | no | no | no | no | yes | no | no | no |
| feature | flexible cable | all-metal build | 180° rotation limit |
Specifications
| Features | ISO/PAS 17712 compliant 8mm steel pin diameter ABS coating provides evidence of tampering of seal body Barrel and pin are connected as a matched pair for convenience |
| Material | Pin: Steel Barrel: Steel Body: ABS plastic |
| Colours | Orange Yellow White |

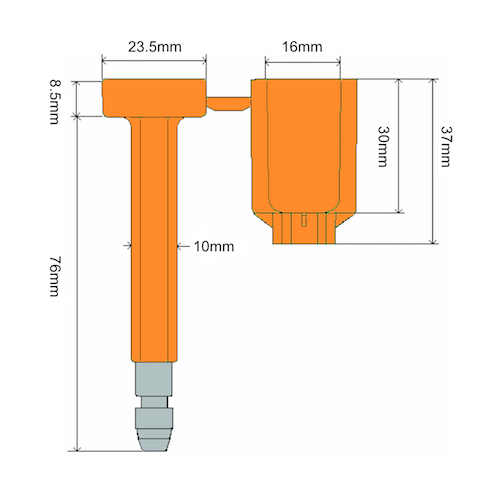

| Dimensions | Barrel diameter: 16mm Pin diameter: 8mm (10mm inc. coating) Perch width: 18mm (23.5mm inc. coating) |

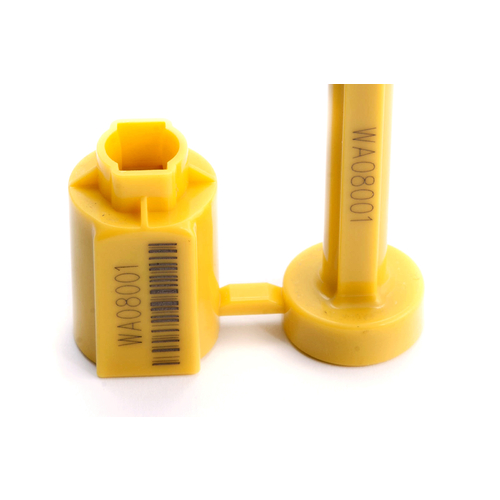

| Markings | Serial numbers on pin and barrel Code 128 Barcode |
| Print method | Laser engraved |
| Breaking strength | Tensile strength of 20kN Shear strength of 8.9kN Bending strength of 67Nm |

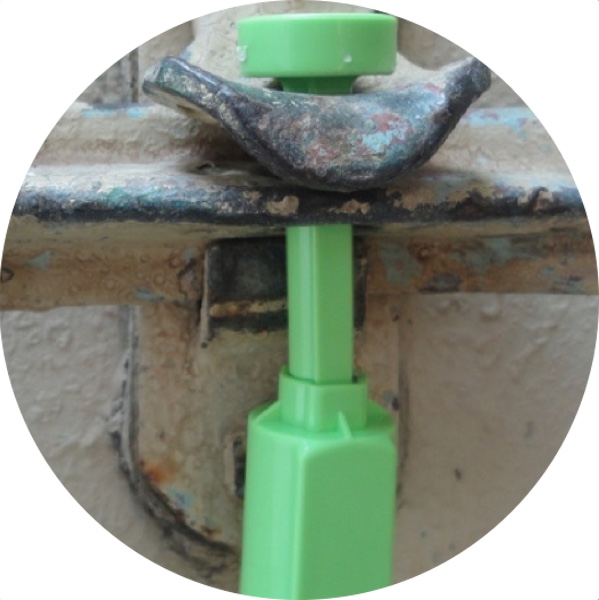

| Applications | Cargo containers Trucks Trailer vehicle doors Rail freight |
| Customisations | Custom markings Colours Numbering |
| For more information | bsealed.co/enabolt2a |
