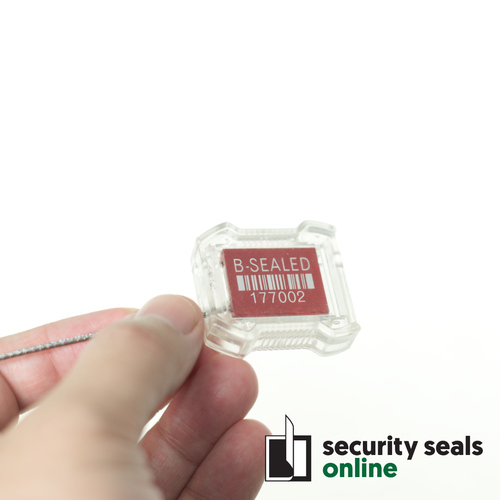

CableSeal EX 1.5mm
Stainless steel cable wire seals
$46.00
inc. GST
In Stock
Notify me when back in stock
Please note that the online prices apply exclusively to self-checkout transactions and do not extend to phone, email, in-store orders and customers with credit terms.
Product Information
The CableSeal EX offers the same user-friendly experience as the CableSeal, while also reinforcing the seal's integrity through an additional encapsulation layer that protects the information on the cable seal body. Its stainless steel wires also offers increase corrosion resistance over the standard CableSeals.
Comparison Table
| CableSeal Micro 1.5 | CableSeal 1.5 | CableSeal EX 1.5 | CableSeal 2.5 | CableSeal 2.5+ | CableSeal 3.5 | CableSeal 3.5+ | CableSeal 5.0 | HexSeal Fixed 1.8 | HexSeal Breakaway 1.8 | HexSeal Pull-Tight 1.8 | PlaskaLock v2 | PlaskaLock v2 Type-F | PlaskaLock v2 Nylon Type-F | |
 |
 |
 |
|
|
|
|
|
 |
|
 |
 |
|
|
|
| wire length | 200mm | 300mm | 300mm | 300mm | 1,000mm 2,000mm 4,000mm |
300mm | 1,000mm | 300mm | 220mm | 325mm | 300mm | 150mm | 100mm | 100mm |
| wire diameter | 1.5mm | 1.5mm | 1.5mm | 2.5mm | 2.5mm | 3.5mm | 3.5mm | 5.0mm | 1.8mm | 1.8mm | 1.8mm | 1.5mm 1.8mm |
1.5mm | 1.5mm |
| material | galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
stainless steel aluminium die-casted zinc alloy plastic |
galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
abs plastic stainless steel galvanised steel |
abs plastic stainless steel galvanised steel |
abs plastic stainless steel galvanised steel |
polypropylene plastic chrome steel |
polypropylene plastic chrome steel |
polypropylene plastic nylon |
| locking head | 24mm x 14mm x 4.9mm | 25mm x 20mm x 6.3mm | 25mm x 25mm x 7.5mm | 25mm x 20mm x 6.3mm | 25mm x 20mm x 6.3mm | 25mm x 27.6mm x 8mm | 25mm x 27.6mm x 8mm | 28mm x 37mm x 9mm | 27mm x 20mm | 27mm x 20mm | 26mm x 12mm | 40mm x 24mm x 6.3mm | 40mm x 24mm x 6.3mm | 40mm x 24mm x 6.3mm |
| break strength | >250kg-f | >250kg-f | >250kg-f | >450kg-f | >450kg-f | >1,000kg-f | >1,000kg-f | >1,000kg-f | >150kg-f | >150kg-f | >150kg-f | >120kg-f | >100kg-f | |
| iso/pas 17712 | yes | yes | yes |
Specifications
| Features | Cables are made from stainless steel cable and will splay upon cutting thereby preventing rejoining. Body is made from corrosive resistant aluminium alloy. Plastic transparent cover for increase tamper evidence. Offer higher corrosion resistance over standard CableSeals. Requires cable cutters to remove seals. |
| Material | Cable: Braided stainless steel cable Body: Aluminium alloy Encapsulation: Plastic |

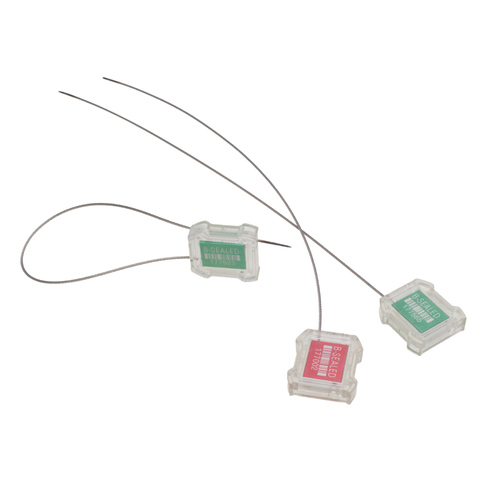

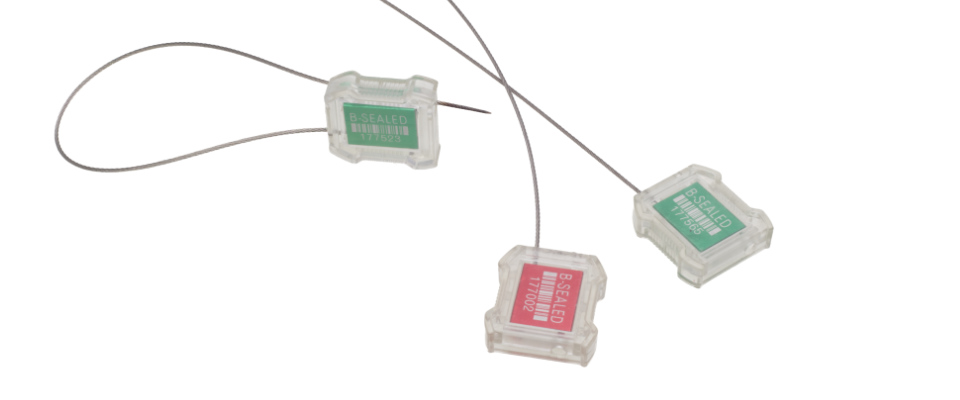

| Colours | Red Green |
| Dimensions | Cable length: 300mm Cable diameter: 1.5mm Locking body length: 25mm Locking body width: 25mm Locking body height: 7.5mm |

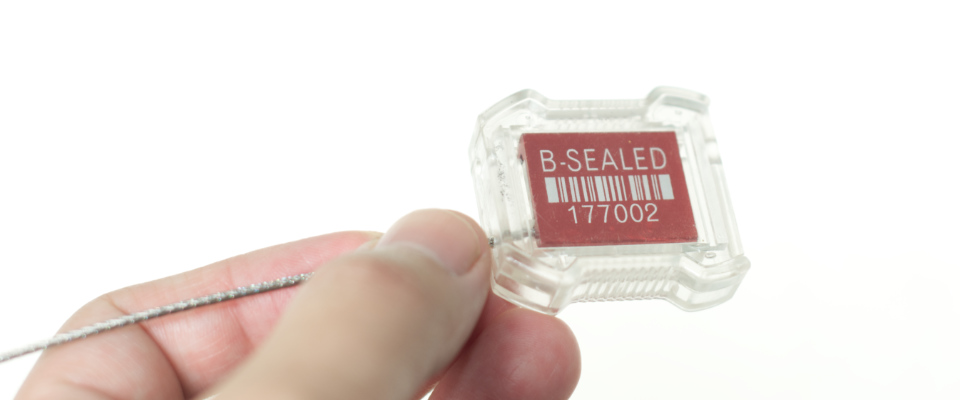

| Markings | Serial numbers Barcode * May include B-Sealed markings |
| Print method | Laser engraved |
| Breaking strength | Tensile strength greater than 250kg-f |
| Applications | Shipping containers Trucks Rail freight Utility meters & valves Plastic distribution boxes Valves in petrochemical industry Recycled water taps Car seal |
| Customisations | Various lengths Colour Logo printing Other markings Barcode, QR codes Serial numbers * Minimum order quantity required |
| For more information | bsealed.co/cableseal |
