CableSeal 3.5mm
Cable wire seals
Notify me when back in stock
Please note that the online prices apply exclusively to self-checkout transactions and do not extend to phone, email, in-store orders and customers with credit terms.
Product Information

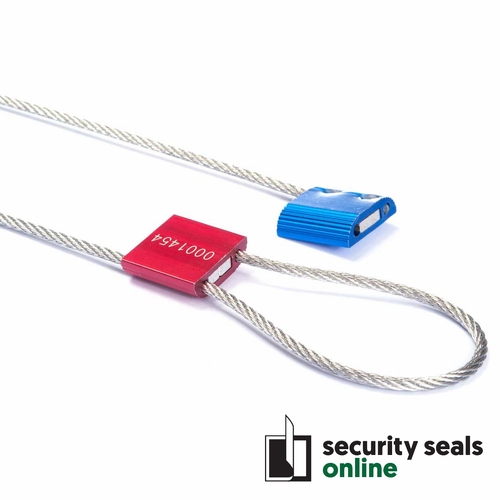

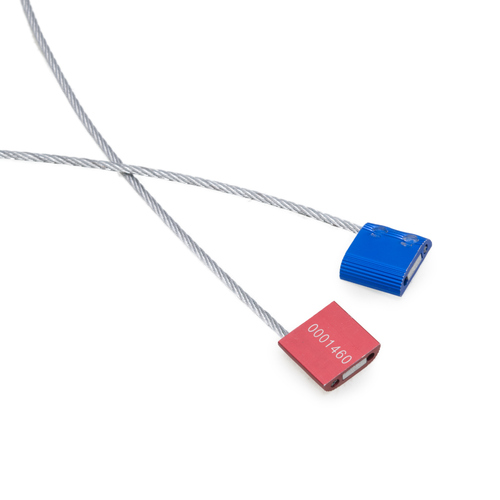

The CableSeal is a high-security seal that provides a versatile barrier. Its pull-tight feature makes it easy to use, and the braided aircraft cable is tamper-evident, with various diameters available to fit different locking holes and breaking strength requirements. If someone attempts to cut the cable, it will splay, making it impossible to rejoin. Both the CableSeal 3.5 and CableSeal 5.0 are compliant with C-TPAT regulations and have received "H" certification according to ISO/PAS 17712:2013 standards. The locking mechanism is made of zinc extrusion, and the cables are non-preformed galvanised steel aircraft cables. The CableSeal is an excellent choice for those seeking a high-security, user-friendly seal.
Customisation
Security Seals Online can provide you with wide range of customised seals. We can engrave using your own artwork or create a design for you. We offer a speedy service with a short lead-time.
Enhanced security features by adding your own markings or logo to the security seals.
Create additional instructions for your users.
Emphasise warnings.
Provide additional notes.
We provide different styles of security seals, ranging from pull tight seals to security labels.
Please note that the security seals will often already include a serial number. They may also include manufacturing markings too. Additional markings will be printed on the back side of the seal.
Rapid turnaround available. Customised using our local manufacturing facilities. Despatched in 24-48 hours*. Although we endevour to despatch all orders within 24-48 hours, there may be unforeseen delays. We will let you know if this hppens.
To accommodate other customised requests may include a minimum order quantity. If you need help with customising, just send us an email and we will get back to you as soon as possible.
Braided steel cablewill splay upon cutting to prevent rejoining |
 |
 |
|
 |
 |
Anodised & laser engravedfor high contrast and easy-to-read printing |
Comparison Table
| CableSeal Micro 1.5 | CableSeal 1.5 | CableSeal EX 1.5 | CableSeal 2.5 | CableSeal 2.5+ | CableSeal 3.5 | CableSeal 3.5+ | CableSeal 5.0 | HexSeal Fixed 1.8 | HexSeal Breakaway 1.8 | HexSeal Pull-Tight 1.8 | PlaskaLock v2 | PlaskaLock v2 Type-F | PlaskaLock v2 Nylon Type-F | |
 |
 |
 |
|
|
|
|
|
 |
|
 |
 |
|
|
|
| wire length | 200mm | 300mm | 300mm | 300mm | 1,000mm 2,000mm 4,000mm |
300mm | 1,000mm | 300mm | 220mm | 325mm | 300mm | 150mm | 100mm | 100mm |
| wire diameter | 1.5mm | 1.5mm | 1.5mm | 2.5mm | 2.5mm | 3.5mm | 3.5mm | 5.0mm | 1.8mm | 1.8mm | 1.8mm | 1.5mm 1.8mm |
1.5mm | 1.5mm |
| material | galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
stainless steel aluminium die-casted zinc alloy plastic |
galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
abs plastic stainless steel galvanised steel |
abs plastic stainless steel galvanised steel |
abs plastic stainless steel galvanised steel |
polypropylene plastic chrome steel |
polypropylene plastic chrome steel |
polypropylene plastic nylon |
| locking head | 24mm x 14mm x 4.9mm | 25mm x 20mm x 6.3mm | 25mm x 25mm x 7.5mm | 25mm x 20mm x 6.3mm | 25mm x 20mm x 6.3mm | 25mm x 27.6mm x 8mm | 25mm x 27.6mm x 8mm | 28mm x 37mm x 9mm | 27mm x 20mm | 27mm x 20mm | 26mm x 12mm | 40mm x 24mm x 6.3mm | 40mm x 24mm x 6.3mm | 40mm x 24mm x 6.3mm |
| break strength | >250kg-f | >250kg-f | >250kg-f | >450kg-f | >450kg-f | >1,000kg-f | >1,000kg-f | >1,000kg-f | >150kg-f | >150kg-f | >150kg-f | >120kg-f | >100kg-f | |
| iso/pas 17712 | yes | yes | yes |
Specifications
| Features | Cables are non-preformed galvanised steel aircraft cable and will splay upon cutting thereby preventing rejoining. Body is made from corrosive resistant aluminium alloy. Unique locking mechanism for minimal reversal at engagement. |
| Material | Cable: Braided steel cable Body: Aluminium alloy |
| Colours | Red Blue Gold / Yellow |
| Dimensions | Cable length: 300mm Cable diameter: 3.5mm Locking body length: 25mm Locking body width: 27.6mm Locking body height: 8.0mm |
| Markings | Serial numbers Barcode (available on selected colours only) Customised Serial numbers Barcode (available on selected colours only) Customised markings (back side) * May include B-Sealed markings |
| Print method | Laser engraved |
| Breaking strength | Tensile strength of > 1,000kg-f |
| Applications | Shipping containers Trucks Rail freight Utility meters & valves Plastic distribution boxes Valves in petrochemical industry Recycled water taps |
| Customisations | Various colour Logo and other markings Laser engraved / Hot stamped Serial numbers Barcodes & QR codes * Minimum order quantity required |
| For more information | bsealed.co/cableseal |
