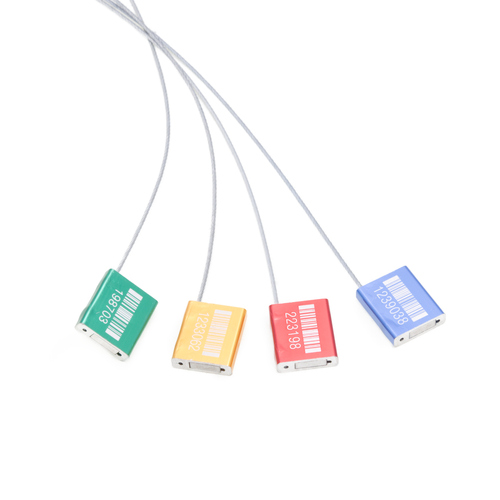

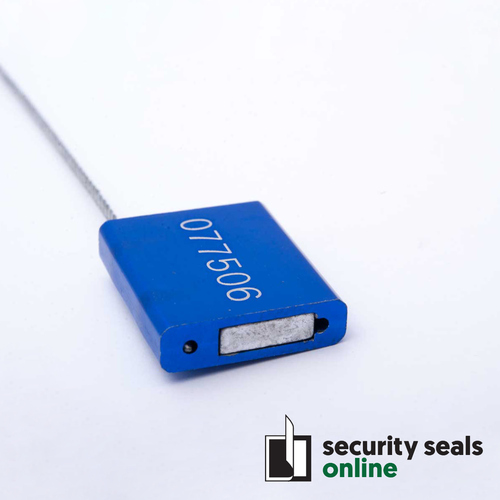

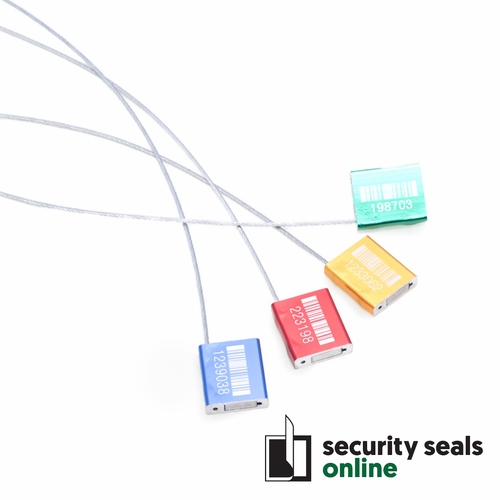

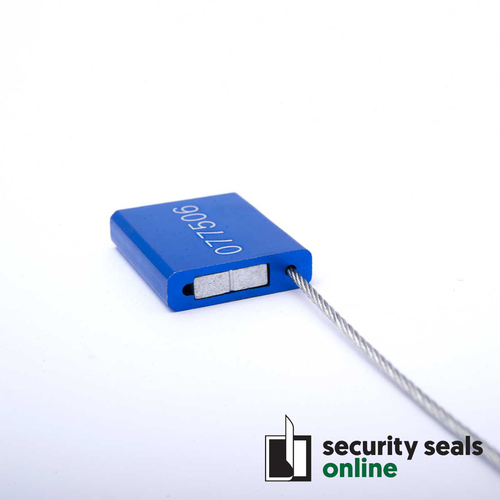

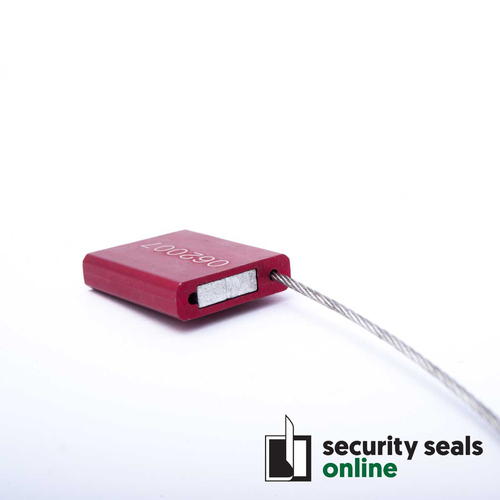

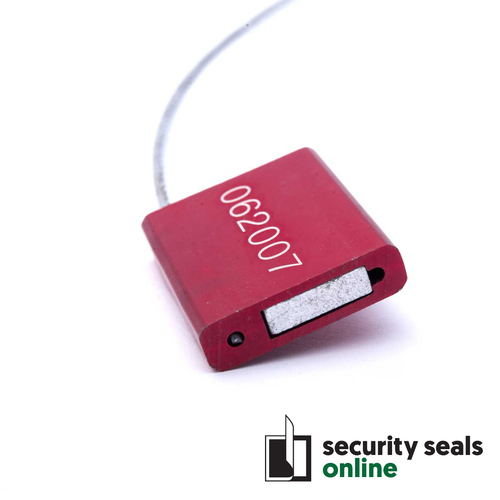

CableSeal 1.5mm
Cable wire seals
Notify me when back in stock
Please note that the online prices apply exclusively to self-checkout transactions and do not extend to phone, email, in-store orders and customers with credit terms.
Product Information
The CableSeal is a security solution that offers both versatility and ease-of-use. Despite its simplicity, it provides high-level security. This seal features a tamper-evident braided aircraft cable with varying diameters to fit different locking holes and meet different breaking strength requirements. Upon cutting, the cable will splay, making it impossible to rejoin. The CableSeal is suitable for various applications and offers outdoor durability due to its rugged construction, made of lightweight aluminum extrusion with die-casted zinc alloy locking mechanisms. Additionally, the aluminum casing is anodised to enable clear and contrasting print when laser engraved.
Customisation
Security Seals Online can provide you with wide range of customised seals. We can engrave using your own artwork or create a design for you. We offer a speedy service with a short lead-time.
Enhanced security features by adding your own markings or logo to the security seals.
Create additional instructions for your users.
Emphasise warnings.
Provide additional notes.
We provide different styles of security seals, ranging from pull tight seals to security labels.
Please note that the security seals will often already include a serial number. They may also include manufacturing markings too. Additional markings will be printed on the back side of the seal.
Rapid turnaround available. Customised using our local manufacturing facilities. Despatched in 24-48 hours*. Although we endevour to despatch all orders within 24-48 hours, there may be unforeseen delays. We will let you know if this happens.
To accommodate other customised requests may include a minimum order quantity. If you need help with customising, just send us an email and we will get back to you as soon as possible.
Braided steel cablewill splay upon cutting to prevent rejoining |
 |
 |
|
 |
 |
Anodised & laser engravedfor high contrast and easy-to-read printing |
Comparison Table
| CableSeal Micro 1.5 | CableSeal 1.5 | CableSeal EX 1.5 | CableSeal 2.5 | CableSeal 2.5+ | CableSeal 3.5 | CableSeal 3.5+ | CableSeal 5.0 | HexSeal Fixed 1.8 | HexSeal Breakaway 1.8 | HexSeal Pull-Tight 1.8 | PlaskaLock v2 | PlaskaLock v2 Type-F | PlaskaLock v2 Nylon Type-F | |
 |
 |
 |
|
|
|
|
|
 |
|
 |
 |
|
|
|
| wire length | 200mm | 300mm | 300mm | 300mm | 1,000mm 2,000mm 4,000mm |
300mm | 1,000mm | 300mm | 220mm | 325mm | 300mm | 150mm | 100mm | 100mm |
| wire diameter | 1.5mm | 1.5mm | 1.5mm | 2.5mm | 2.5mm | 3.5mm | 3.5mm | 5.0mm | 1.8mm | 1.8mm | 1.8mm | 1.5mm 1.8mm |
1.5mm | 1.5mm |
| material | galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
stainless steel aluminium die-casted zinc alloy plastic |
galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
galvanised steel aluminium die-casted zinc alloy |
abs plastic stainless steel galvanised steel |
abs plastic stainless steel galvanised steel |
abs plastic stainless steel galvanised steel |
polypropylene plastic chrome steel |
polypropylene plastic chrome steel |
polypropylene plastic nylon |
| locking head | 24mm x 14mm x 4.9mm | 25mm x 20mm x 6.3mm | 25mm x 25mm x 7.5mm | 25mm x 20mm x 6.3mm | 25mm x 20mm x 6.3mm | 25mm x 27.6mm x 8mm | 25mm x 27.6mm x 8mm | 28mm x 37mm x 9mm | 27mm x 20mm | 27mm x 20mm | 26mm x 12mm | 40mm x 24mm x 6.3mm | 40mm x 24mm x 6.3mm | 40mm x 24mm x 6.3mm |
| break strength | >250kg-f | >250kg-f | >250kg-f | >450kg-f | >450kg-f | >1,000kg-f | >1,000kg-f | >1,000kg-f | >150kg-f | >150kg-f | >150kg-f | >120kg-f | >100kg-f | |
| iso/pas 17712 | yes | yes | yes |
Specifications
| Features | Cables are non-preformed galvanised steel aircraft cable and will splay upon cutting thereby preventing rejoining Body is made from corrosive resistant aluminium alloy Unique locking mechanism for minimal reversal at engagement |
| Material | Cable: Braided steel cable Body: Aluminium alloy |
| Colours | Red Blue Black Green Yellow / Gold |
| Dimensions | Cable length: 300mm Cable diameter: 1.5mm Locking body length: 25mm Locking body width: 20mm Locking body height: 6.3mm |
| Markings | Serial numbers Barcode (available on selected colours only) Customised Serial numbers Barcode (available on selected colours only) Customised markings (back side) * May include B-Sealed markings |
| Print method | Laser engraved |
| Breaking strength | Tensile strength greater than 250kg-f |
| Applications | Shipping containers Trucks Rail freight Utility meters & valves Plastic distribution boxes Valves in petrochemical industry Recycled water taps |
| Customisations | Custom markings Colours Cable length Serial numbers Barcode & QR Codes * Minimum order quantity required |
| For more information | bsealed.co/cableseal |
